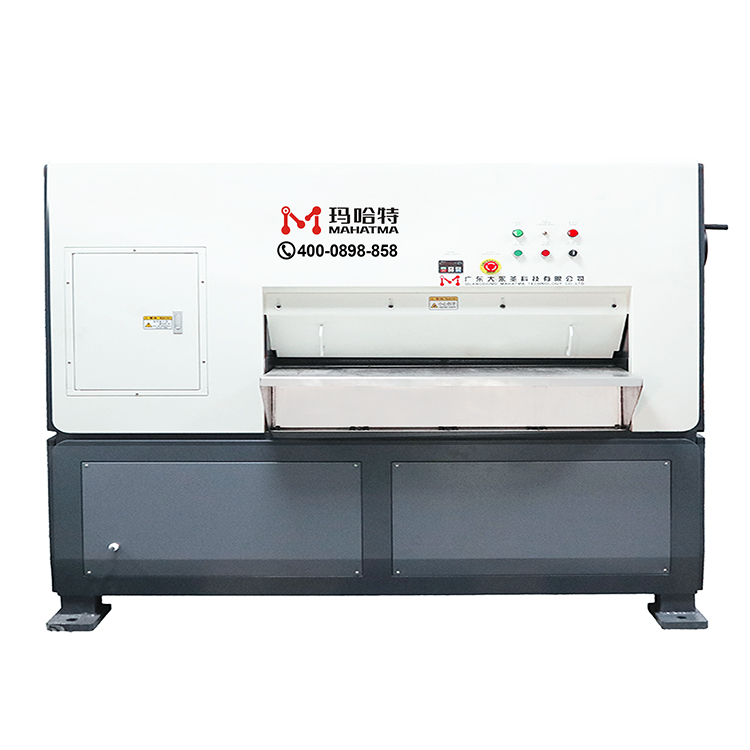

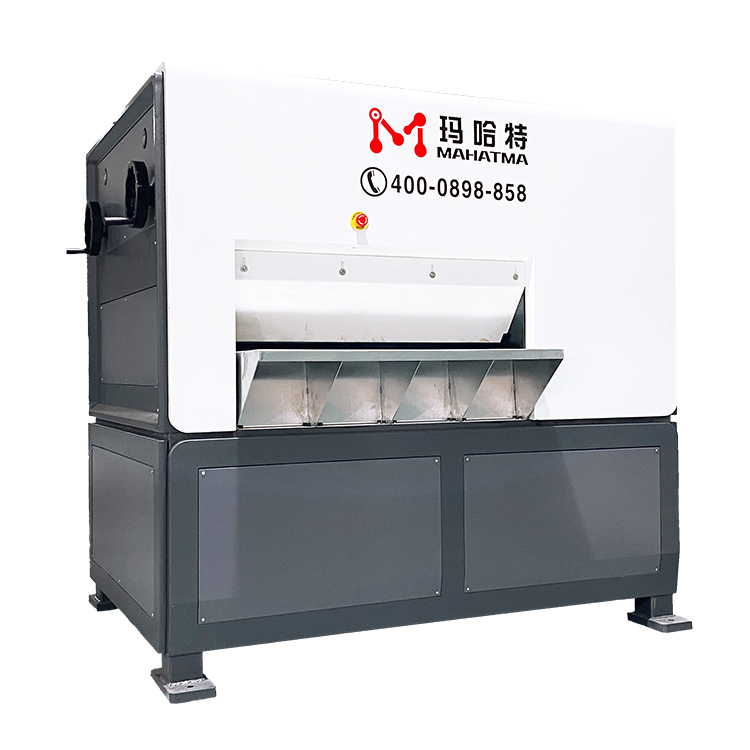

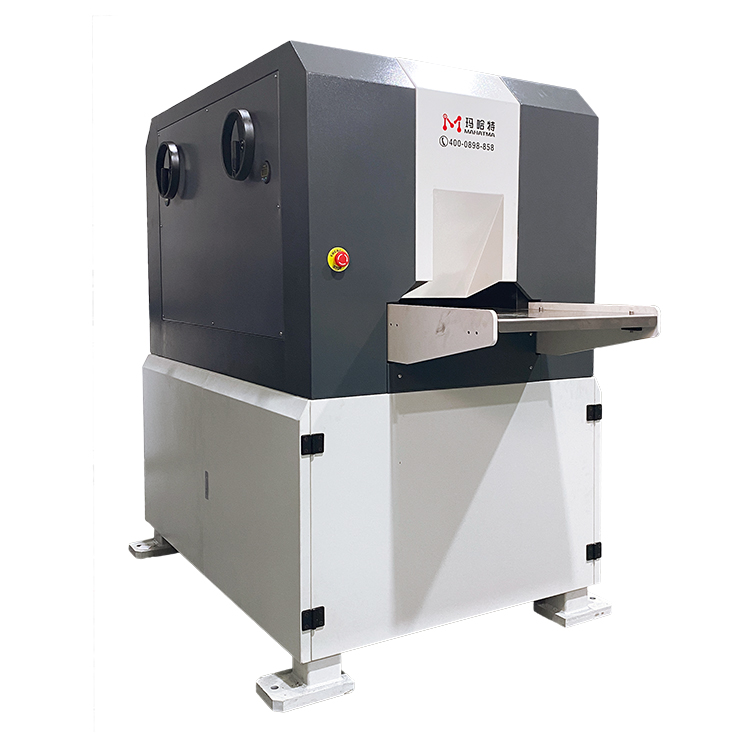

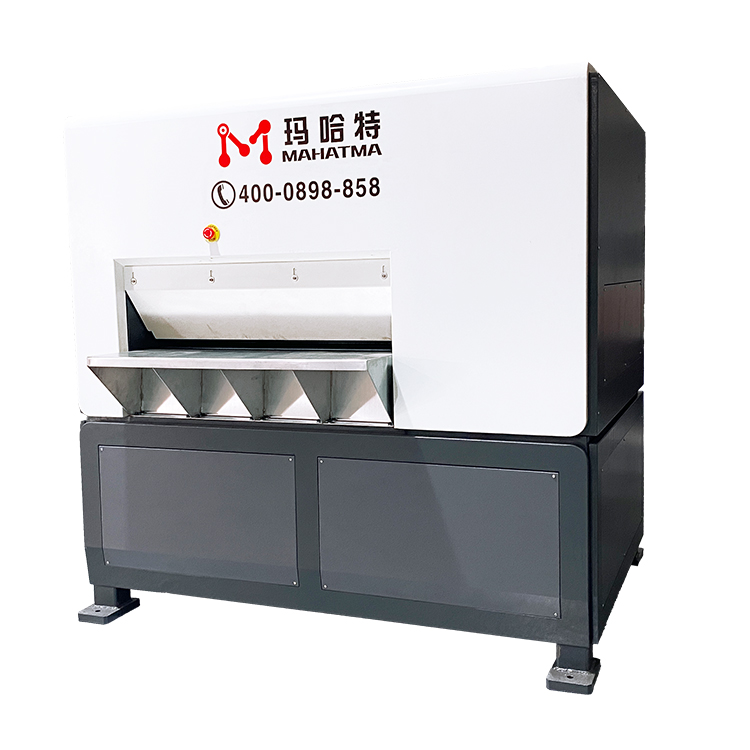

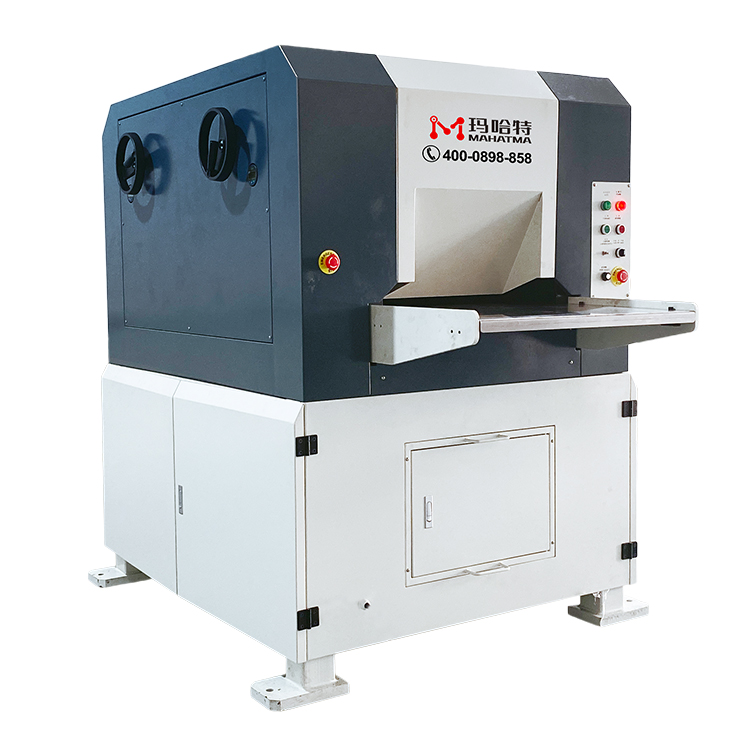

STS70 series leveling machine

The leveling drum of ordinary precision leveling machine is made of high-quality bearing steel, with high surface finish and good wear resistance! It is suitable for the leveling of some metal strips or sheet products with low leveling accuracy requirements.

  • 24-hour customer
  • Guarantee
  • Speed per hour

Product introduction

The precision leveling machine is equipped with frequency conversion speed regulation, which can freely adjust the working speed, buffer start and stop, and the material is not easy to shake and deform, and the surface is not easy to damage. The precision leveling adjustment method is the manual adjustment of the four-point fine-tooth screw and the adjustment of the upper and lower rollers of the worm gear and worm. Stainless steel auxiliary pallets are installed at both ends of the leveling machine, which is convenient for manual production. Compared with manual beating or other methods, the precision leveler greatly saves human resources and improves production efficiency and product quality! It can cooperate with punch, hydraulic press, shearing machine, loading and unloading manipulator, automatic loading and unloading platform and other equipment to automatically level the sheet or roll to realize automatic continuous production. Applicable to all kinds of aluminum plate, stainless plate, copper Plate, iron plate, circuit board, aluminum substrate and other metal materials.


Product parameters

STS70 Series Original leveler parameter table
Machine ModelSTS70-200-13STS70-400-13STS70-600-13STS70-800-13STS70-1300-13
 Roller Diameterφ70mmφ70mmφ70mmφ70mmφ70mm
Roller Number1313131313
Nominal Leveled Width0-200mm0-400mm0-600mm0-800mm0-1300mm
Rated Plate Thickness(Q235)0.8~6.0mm0.8~6.0mm0.8~6.0mm0.8~6.0mm0.8~6.0mm
Maximum Thickness(Q235)8mm8mm8mm8mm8mm
 Shortest Workpiece120mm120mm120mm120mm120mm
ApplicablesCoiling. Strip Steel, Sheet Metals,etc.
