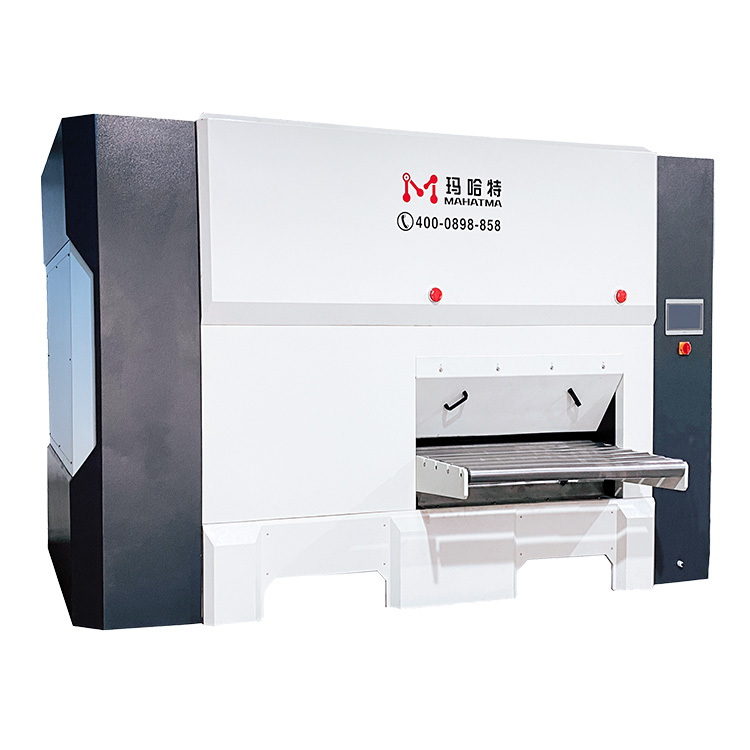

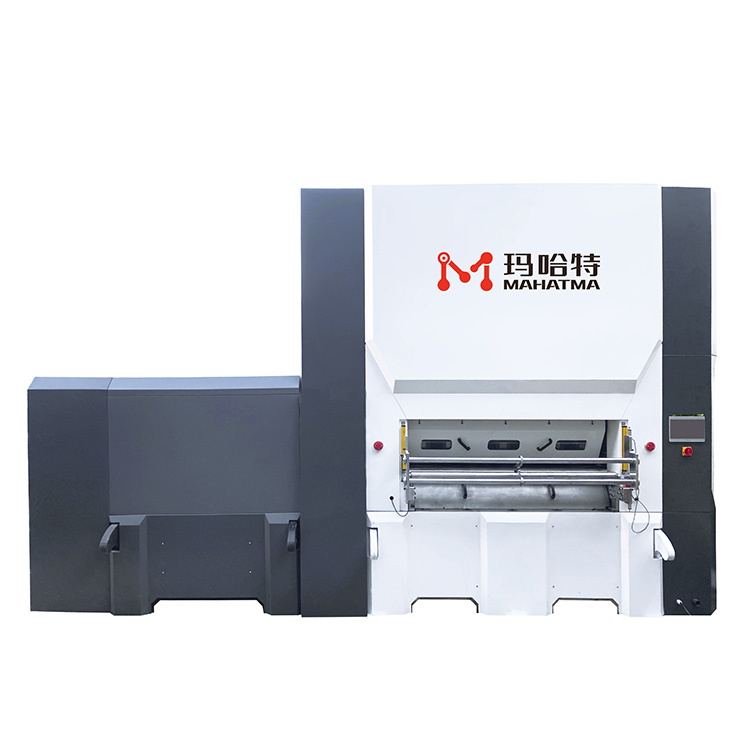

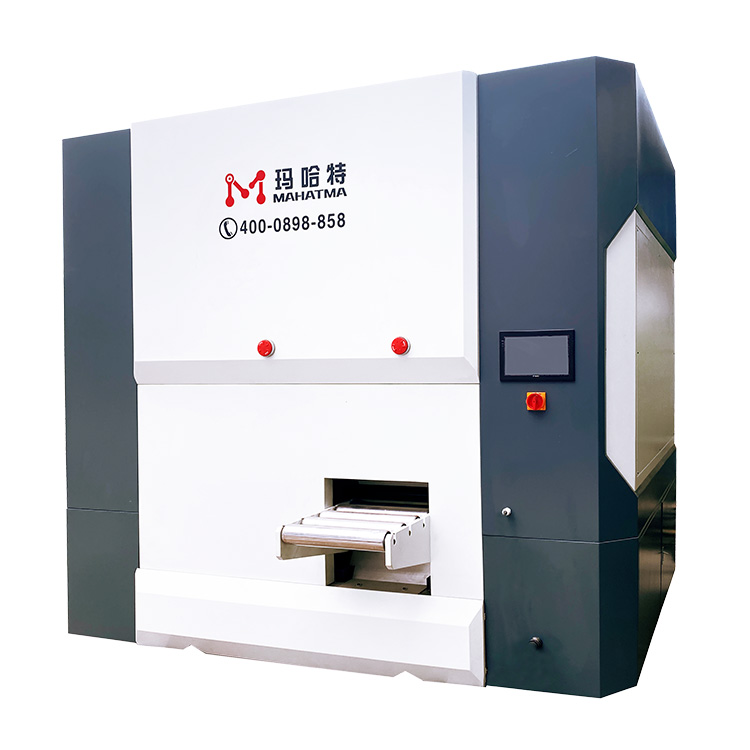

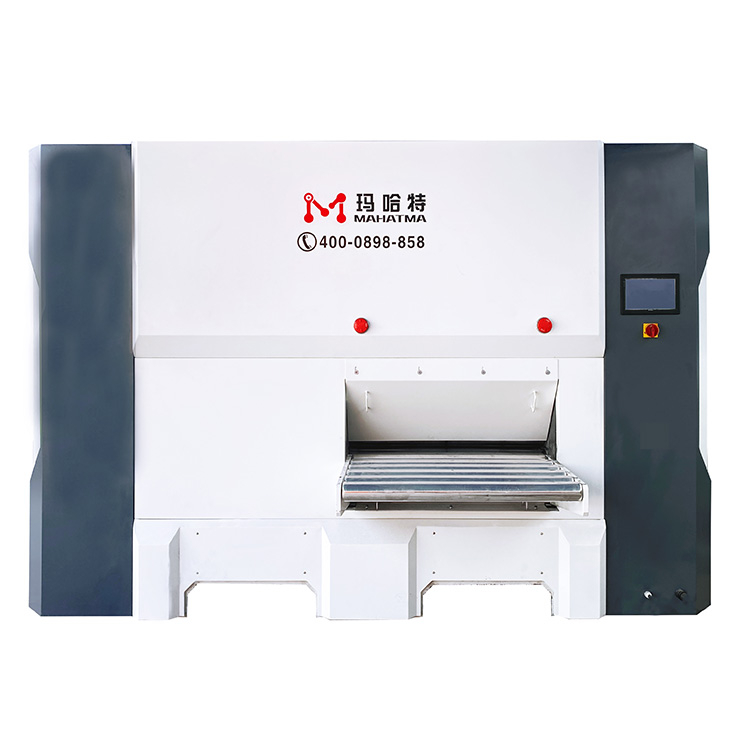

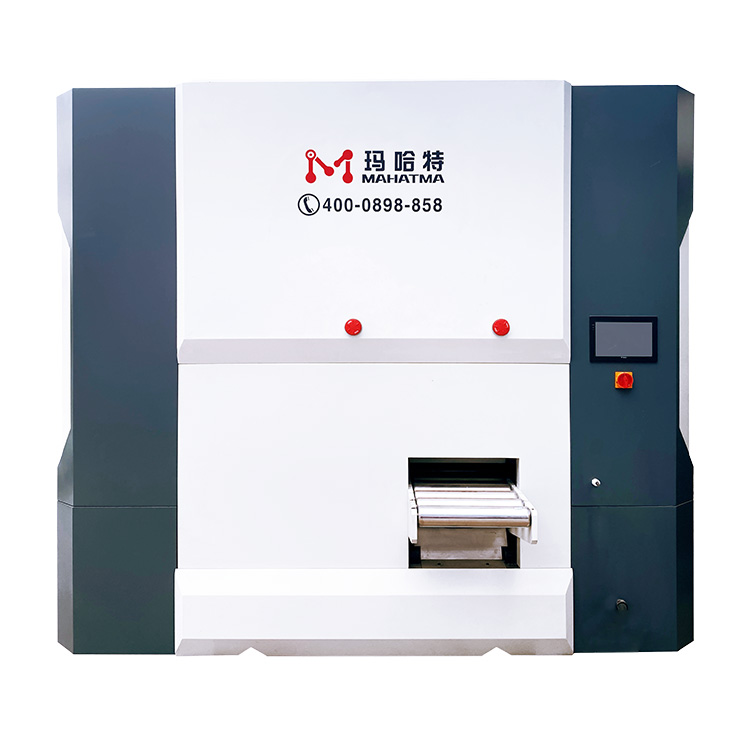

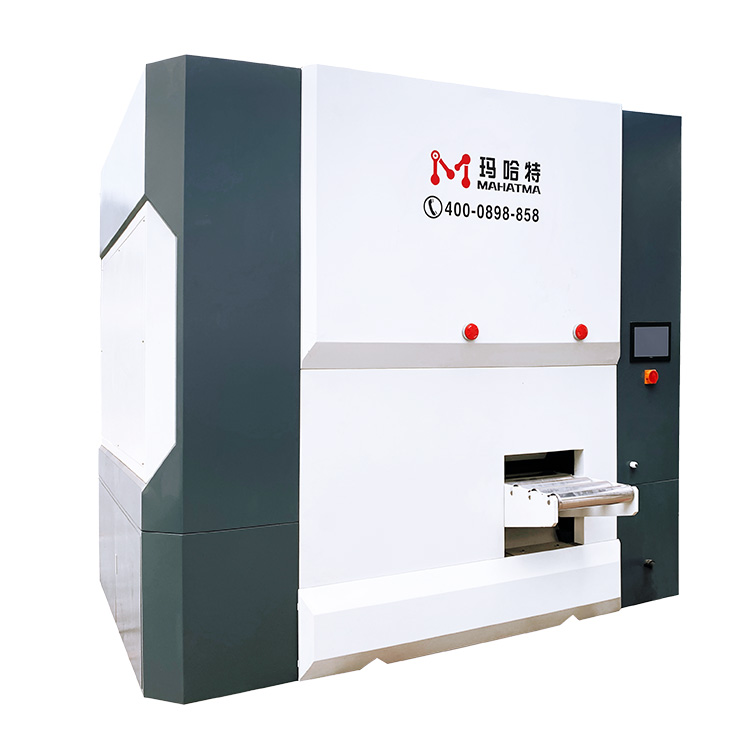

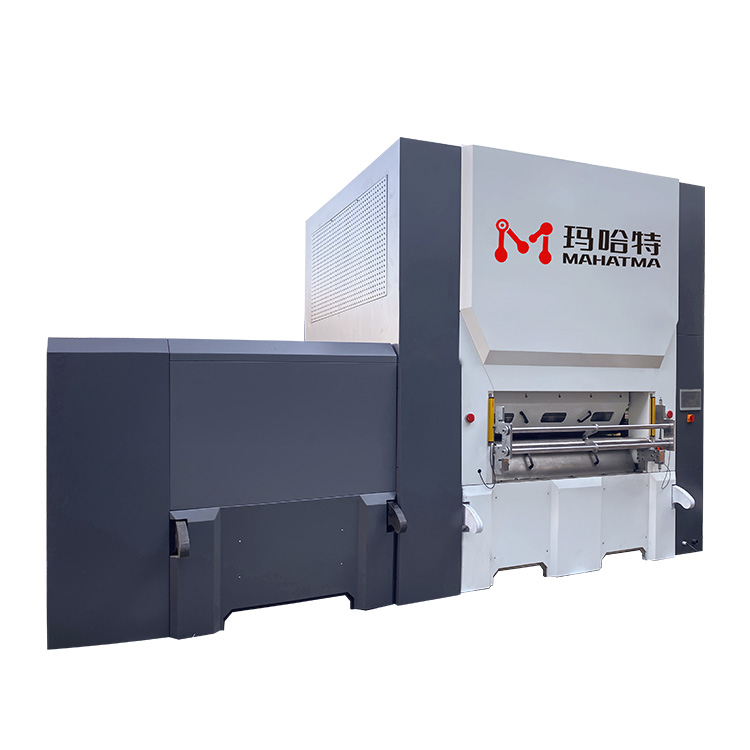

MHT200 Series Plate leveling machine

Under the condition of large elastic-plastic bending of metal materials, no matter how different the original bending degree is, the CNC precision leveling machine uses the \"Bauschinger effect\" of the material to repeatedly bend the plate for many times, gradually reducing the bending deflection, so that the A variety of original curvatures are gradually changed into a single curvature, and it is leveled to achieve the leveling accuracy required by the process.

  • 24-hour customer
  • Guarantee
  • Speed per hour

Product introduction

Under the condition of large elastic-plastic bending of metal materials, no matter how different the original bending degree is, the CNC precision leveling machine uses the "Bauschinger effect" of the material to repeatedly bend the plate for many times, gradually reducing the bending deflection, so that the A variety of original curvatures are gradually changed into a single curvature, and it is leveled to achieve the leveling accuracy required by the process.

The Mahat CNC leveling machine has been widely used in the industry. It has the characteristics of advanced technology, high leveling accuracy, wide process range, high degree of automation, reliable and stable work under high strength and so on. After a series of alternating bending, the motor and PLC control the precise control of the pressing amount of each leveling drum to eliminate the internal stress and fundamentally solve the uneven leveling effect caused by the different stress of each part of the sheet. Ideal situation, thus achieving high-precision leveling.

Compared with other leveling methods, the control system of the machine has the functions of storing, calling, editing process and equipment parameters, and has the function of identifying and early warning of misoperation. When in use, on the operating table, you can set the reduction amount of the inlet and outlet according to parameters such as plate thickness, plate width, material strength or the existing parameters in the database, so as to realize the electric adjustment of the work roll out and in gap, etc., and can be adjusted manually. and corrections.

All the movements of the machine are centrally controlled by the operating console, which is simple and convenient to operate, and has a digital display to display the displacement, which is very simple and fast to operate. It only takes a few seconds to level high-precision and complex hardware that usually takes a long time to be manually leveled. It is suitable for vehicle manufacturing, locomotive manufacturing, construction industry, medical technology industry, chassis manufacturing, 5G communication, stamping and other processing industries. leveling equipment. It plays an important role in the verticality, parallelism and appearance of industrial structural parts! ! !

1. The auxiliary wheel reduces the gap between the upper and lower straightening rollers to ensure higher leveling accuracy;

2. 10-inch high-precision touch screen display, PLC control, visual input, editing, modification and storage of process parameters; adjust the drop point up and down;

3. It only takes a few minutes to make stampings, sheets and parts flat and almost stress-free;

4. The precision leveling machine is a metal sheet that has been repeatedly bent through a large number of staggered leveling rollers, and the bending amount can be adjusted to achieve the bending plan required by the leveling lock, so the appearance of the sheet is not damaged;

5. After the number of sheets is repeatedly bent, the length of the metal fibers gradually tends to be consistent, the internal stress of the material is eliminated at the same time, and the metal sheet is naturally leveled;

6. Many users use cutting methods to achieve flatness, and the use of precision levelers can save a lot of materials;

7. Due to the continuous and repeated bending technology of the precision leveling machine, the leveling efficiency is doubled, entering the continuous production line, saving a lot of labor costs and getting rid of the technical dependence of traditional leveling experience;

8. Using universal joint transmission, the force is greater, the transmission force is even, the noise is low, and the equipment is more durable!


Product parameters

MHT200 Series sheet metal CNC precision leveler parameter table
Machine ModelMHT200-450-15MHT200-600-15MHT200-1000-15MHT200-1300-15MHT200-1600-15MHT200-2100-15
Roller Diameterφ200mmφ200mmφ200mmφ200mmφ200mmφ200mm
Roller Number15/1915/1915/1915/1915/1915/19
Leveled Width0-450mm0-600mm0-1000mm0-1300mm0-1600mm0-2100mm
Rated Plate Thickness20~30mm20~30mm20~30mm20~30mm20~30mm20~30mm
Maximum Thickness404040404040
Shortest Workpiece310mm310mm310mm310mm310mm310mm
Applicable ObjectCoil, plane parts, sheet materials, etc
