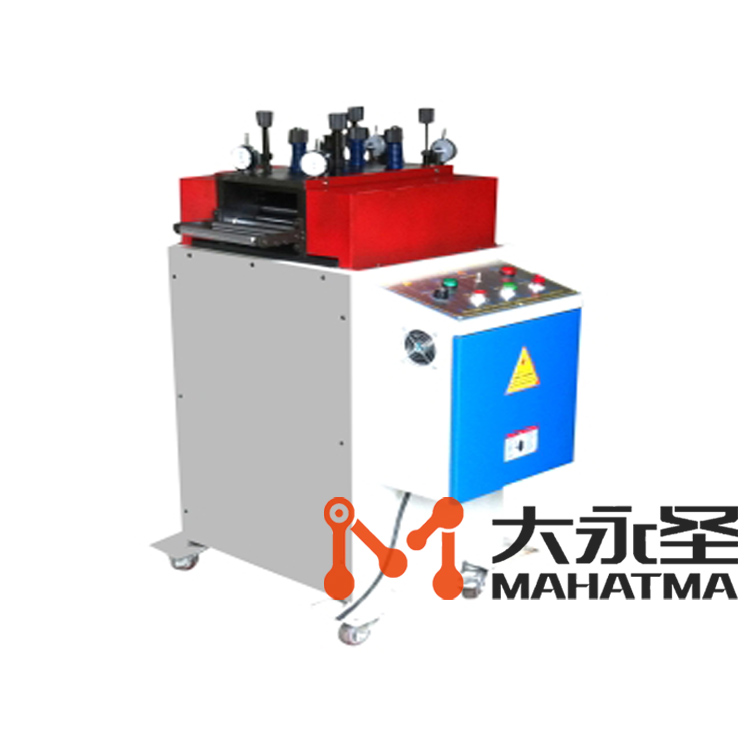

SPS thin plate leveling machine is an upgraded version of our company\'s S series leveling machine, which is specially designed for thin material products that require high precision punching. It is well known that a good product cannot be produced without leveling and stress-relieving the coil, so the performance of the leveler plays a key role in production.
1. The SPS thin plate leveling machine is an upgraded version of the company's S series leveling machine, which is specially designed for thin material products that require high-precision punching. It is well known that a good product cannot be produced without leveling and stress-relieving the coil, so the performance of the leveler plays a key role in production.
2. The leveling wheel and straightening auxiliary wheel of the leveling machine are made of imported SUJ2 and heat treated with HRC60. Post-grinding, then hard chrome plating and post-grinding to ensure uniform hard chrome layer and shape tolerance of each shaft.
3. The leveling adjustment of the SPS thin plate leveling machine adopts a floating four-point balance fine-tuning device, with four precision dial indicators, which can quickly find the leveling point.
4. It adopts universal joint transmission and triple gear full transmission, which is suitable for products with high straightening accuracy requirements.
5. In addition to the straightening roll, the addition of the guide wheel produces a rolling action on the material to further improve the accuracy.
6. High-precision bearings are used, and a lubrication system is installed to prolong the service life.
7. Each straightening wheel of the SPS thin plate leveling machine is equipped with a leveling auxiliary wheel to ensure that it will not be bent and deformed during the production process, thereby improving the flatness quality of the product.
8. The upper and lower auxiliary rollers of this series of levelers are fixed, which improves the rigidity of the upper and lower wheels and prevents deformation under force.
9. The three-overlap plus transmission mechanism of the SPS thin plate leveling machine adopts synchronous independent transmission of each leveling roller, which reduces the backlash tolerance accumulated by the single gear set transmission and improves the flatness requirement of the plate.
10. Due to the difference in material, material width and material thickness, there is no unified numerical reference. Therefore, it is recommended that the SPS sheet leveling machine take a small section of material for trial leveling before mass production, and then continue to produce after the effect is achieved.
|SPS precision leveling machineTechnical parameter table (larger models can be customized)|
|Scroll wheel diameter||Φ24|
|Number of scroll wheels||Up 9 Down 11|
|Feed Wheel||φ 21*2|
|Outlet Wheel||φ 21*3|
|flat adjustment||Manual adjustment screw|
|speed control||Frequency debugging|
|Operating Voltage||Three-phase 338V/220V|
|Sensing style||Photo/electronic sensor|
