Hydraulic precision leveling machine, also known as hydraulic leveling machine, hydraulic leveling machine, this model isMahatFor non-ferrous metal sheet, mirror sheet, sheet metal parts, stamping parts It is a straightening machine designed and produced for plates, sheets and parts that require high surface finish, such as laser cutting parts and flame cutting parts.

HydraulicCorrectingflatThe machine adopts the upper and lower rows of leveling work rolls and support bearings (wheels) A row of intermediate rollers is installed between them to form a double or triple roller structure on the upper and lower sides, with a total of four or six rollers. High precision, resulting in harmonic attenuation straightening, The leveling rollers are optimally supported, with a small distance between them. spacing. The integrated leveling gap adjustment device ensures that the leveling gap remains constant during the entire leveling process, including when the part cross-section changes. Even those hard-to-level burnt cut pieces can be made flat and virtually stress-free in minutes. Fundamentally solve the problems of common leveling, such as uneven leveling, easy to produce roll indentation, workpiece slump, camber bending, etc. The correction accuracy of the plate has a wide range of applications, no rolling marks are left on the surface of the material, and the correction accuracy is higher.

Device performance:

1. Strong hydraulic pressure to correct the gap between the upper and lower rollers (Mechanical dead limit) always remains unchanged to ensure consistent correction of large quantities of parts;

2, 7 inch high precision touch screen display, PLC control, visual input , edit, modify and save process parameters;

3. It only takes a few minutes to make stamping parts, sheets and Parts become flat and virtually stress-free.

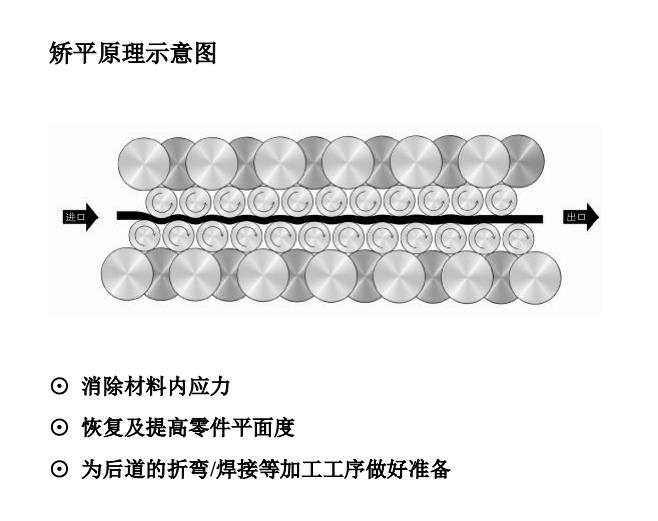

4. The precision leveler is a The arranged leveling rollers have achieved repeated bending, the bending amount can be adjusted, and the bending plan required for leveling can be realized, so the appearance of the sheet is not damaged

5. After the metal plate is repeatedly bent for many times, the length of the metal fiber Gradually tend to be consistent, the internal stress of the material is eliminated at the same time, and the metal sheet is naturally leveled

6. Many users use cutting to achieve flatness, Significant material savings with precision levelers

7. Due to the continuous and repeated bending technology, the precision leveler is The leveling efficiency is doubled, and the continuous production line can save a lot of labor costs and get rid of the technical dependence of traditional leveling experience

This product is inspired by SwitzerlandHRC Precision Leveler, Germany ARKU (Aku) precision correction Based on the principle of flat machine, using innovative design ideas and advanced manufacturing technology, it fills the blank of domestic precision leveling general equipment for plate and sheet parts.

Performance fully in SwitzerlandHRC Precision Leveler, Germany ARKU precision correction Flat machine leveling capability.
While ensuring the quality, we will try our best to control the manufacturing cost so that it can meet the purchasing budget of your company.
FeaturesFeatures:
1. The number of leveling rollers is large and the arrangement is precise, 50 series

2. The application of multiple auxiliary backup rollers ensures that the leveling roller does not bend when it is stressed.
3. The strong hydraulic pressure keeps the gap between the upper and lower leveling rollers always uneven.
4. The rigid structure of the hydraulic press reduces the overall deformation of the machine to a minimum.

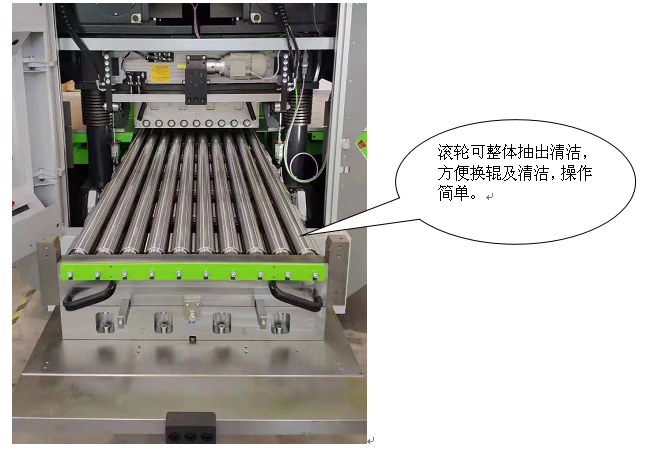

5. The space on the right side of the device is open, which is convenient for roller changing and cleaning.
6. Vertical independent electric control box, touch screen control, easy to operate.
