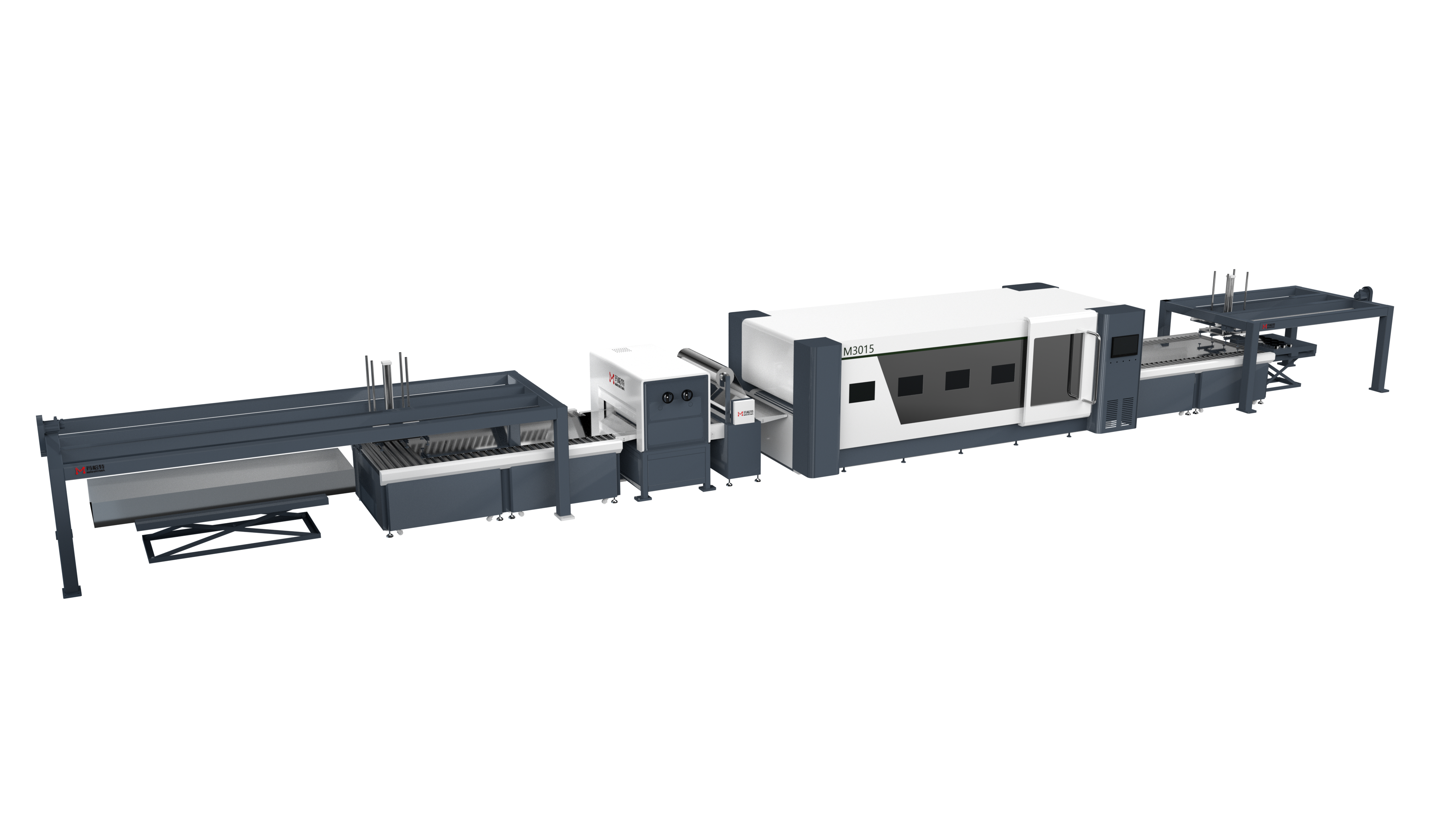

Sheet M series
Robot automatic feeding Thick plate precision cutting and leveling Leveling accuracy up to 0.5mm/m² Automatic assembly line feeding
- 24-hour customer
- Guarantee
- Speed per hour
Product introduction

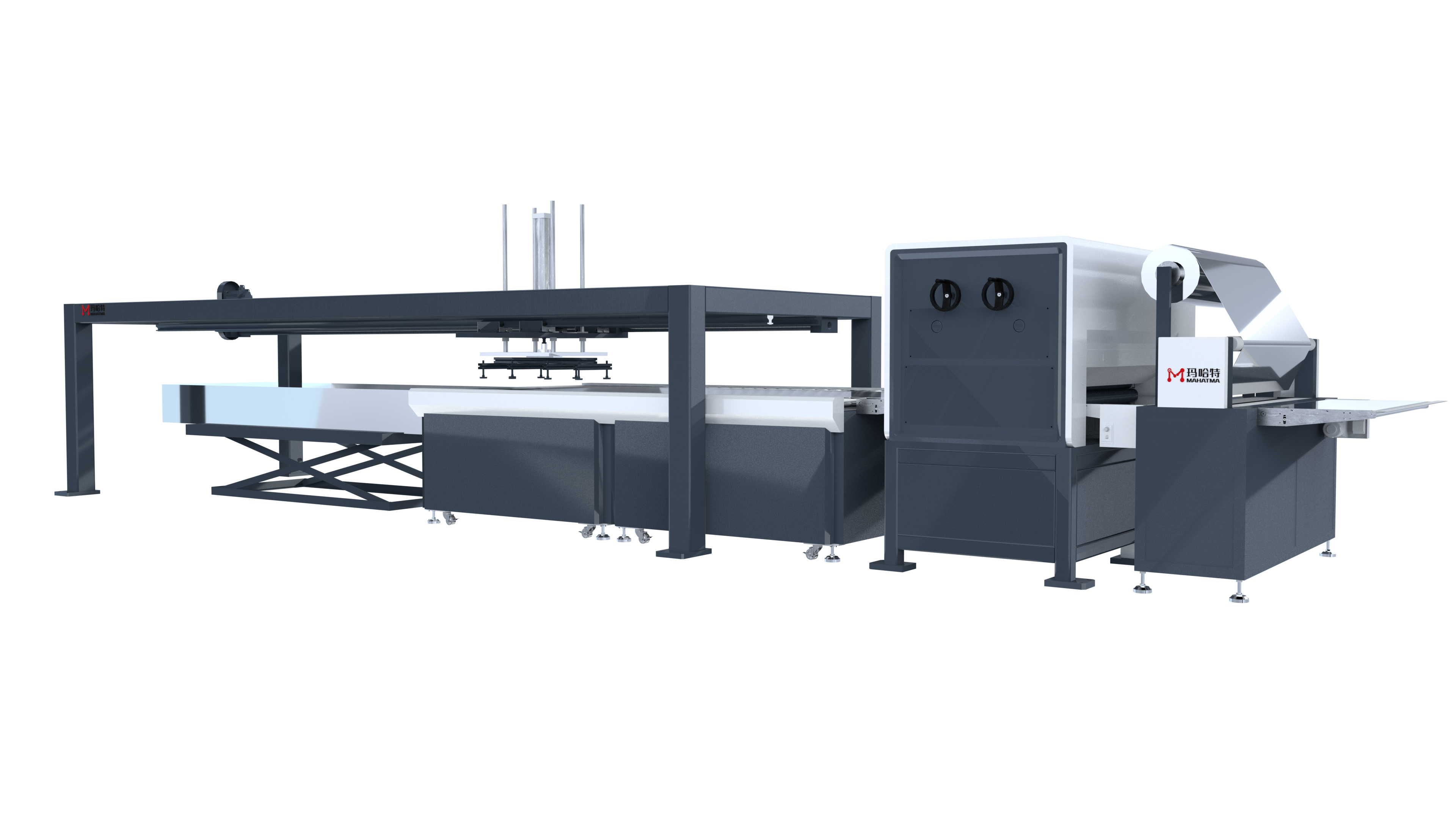

Automatic loading of robots
Precision cutting and leveling of thick plates
Leveling accuracy up to 0.5mm/m²
Automatic assembly line feeding
Product parameters
| Sheet Shear Line Technical features | |||
| Model | MHTR-1300H | MHTR-1500H | MHTR-2000H |
| Maximum Length(mm) | 110 | 110 | 110 |
| Maximum Width(mm) | 1300 | 1500 | 2000 |
| Maximum Thickness(mm) | 3/6/10/15/20 | 3/6/10/15/20 | 3/6/10/15/20 |
| Roller Diameter(mm) | 60/80/120/150/200 | 60/80/120/150/200 | 60/80/120/150/200 |
| Leveling Accuracy(mm/m2) | 0.2 | 0.2 | 0.2 |
| Speed(m/min) | 0-16 | 0-16 | 0-16 |
| Numbers of Roller | 19 | 19 | 19 |
| Controller | CNC | CNC | CNC |
| Feeding Accuracy(mm) | ±0.2 | ±0.2 | ±0.2 |
| Servo Motor | Servo + Reducer | Servo + Reducer | Servo + Reducer |
| Rack motor(kw) | 5 | 5 | 5 |
| Feeding direction | left→right | left→right | left→right |
| Feed line height(mm) | 850±50 | 850±50 | 850±50 |
| Voltage(v) | AC380v | AC380v | AC380v |
| Optional | 1. Blanking manipulator 2. Joint robot 3. Laminating machine 4. Stacking lifting table 5. Blanking platform | ||
