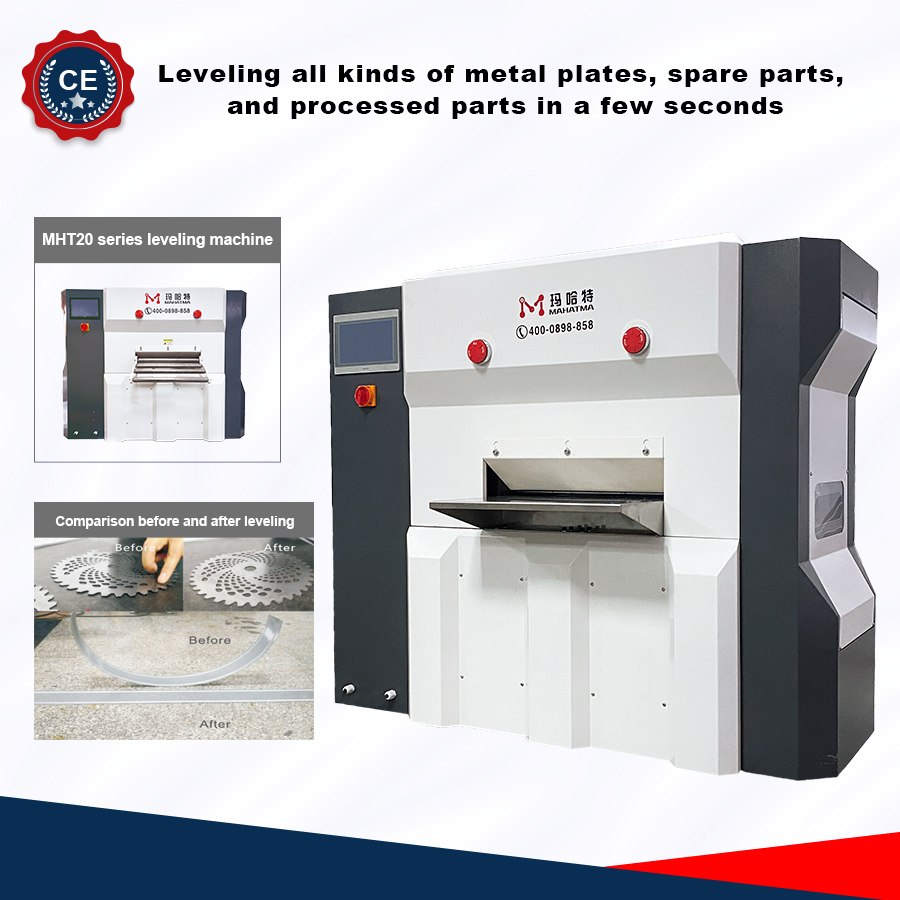

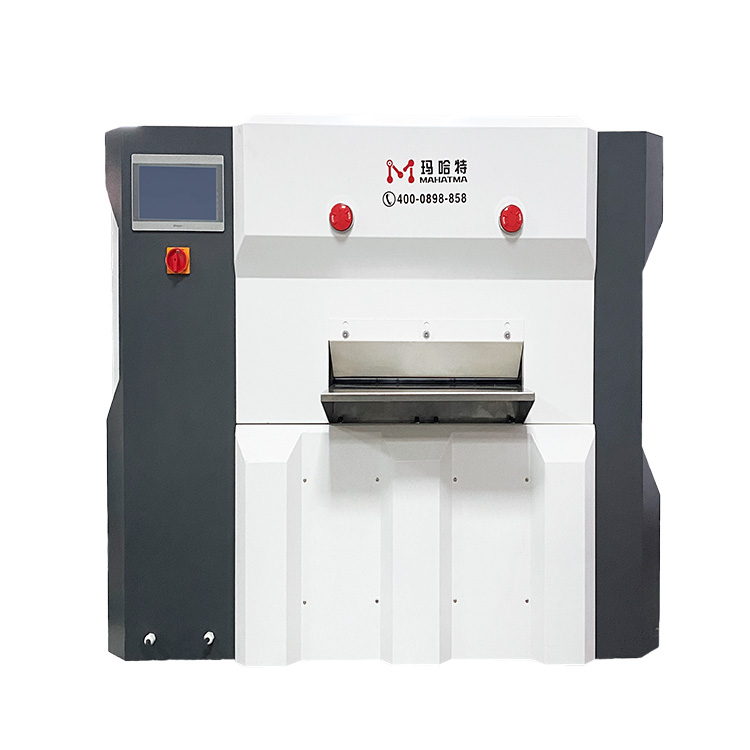

MHT20 series Sheet leveling machine

Under the condition of large elastic-plastic bending of metal materials, no matter how different the original bending degree is, the CNC precision leveling machine uses the \"Bauschinger effect\" of the material to repeatedly bend the plate for many times, gradually reducing the bending deflection, so that the The various original curvatures are gradually changed into a single curvature, and finally it is leveled to achieve the leveling accuracy required by the process.

  • 24-hour customer
  • Guarantee
  • Speed per hour

Product introduction

Under the condition of large elastic-plastic bending of metal materials, no matter how different the original bending degree is, the CNC precision leveling machine uses the "Bauschinger effect" of the material to repeatedly bend the plate for many times, gradually reducing the bending deflection, so that the The various original curvatures are gradually changed into a single curvature, and finally it is leveled to achieve the leveling accuracy required by the process.


CNC leveling machine has been widely used in industry, with advanced technology, high leveling accuracy, wide process range, high degree of automation, reliable and stable work under high strength, etc. Alternate bending, precise control of the pressing amount of each leveling drum through motor and PLC control, eliminates internal stress, and fundamentally solves the unsatisfactory leveling effect caused by different stresses in various parts of the sheet. This achieves high-precision leveling.


Compared with other leveling methods, the control system of the machine has the functions of storing, calling, editing process and equipment parameters, and has the function of identifying and early warning of misoperation. When in use, on the operating table, you can set the reduction amount of the inlet and outlet according to the parameters such as plate thickness and plate width or the existing parameters in the database, so as to realize the electric adjustment of the out and in gap of the work roll, and it can be adjusted and corrected manually.


Control system: This machine adopts Japan's Panasonic PLC controller, and the running speed is controlled by Delta frequency converter. All the actions of the machine are centrally controlled by the operation console. Install emergency switch at four conspicuous positions at the exit to ensure safe operation! And equipped with digital display displacement, the operation is very simple and fast. In just a few seconds, you can level high-precision and complex hardware that would normally require long hours of hand leveling.


CNC leveling machine is a leveling equipment suitable for vehicle manufacturing, locomotive manufacturing, construction industry, medical technology industry, chassis manufacturing, textile machinery, sheet metal processing and other processing industries. It plays a vital role in the verticality, parallelism, appearance and precision of industrial structural parts!



Product parameters

MHT20 Series sheet metal CNC precision leveler parameter table
Machine ModelMHT20-400-19MHT20-600-19MHT20-800-19MHT20-1000-19MHT20-1300-19
Roller Diameterφ20mmφ20mmφ20mmφ30mmφ30mm
Roller Number21/2321/2321/2321/2321/23
Leveled Width0-400mm600mm800mm1000mm1300mm
Rated Plate Thickness0.3~1.2mm0.3~1.2mm0.3~1.2mm0.3~1.2mm0.3~1.2mm
Maximum Thickness2.0mm2.0mm2.0mm2.0mm3mm
Shortest Workpiece40mm40mm40mm40mm40mm
Applicable ObjectTape Coiling. Strip Steel, Sheet Metals,etc.
