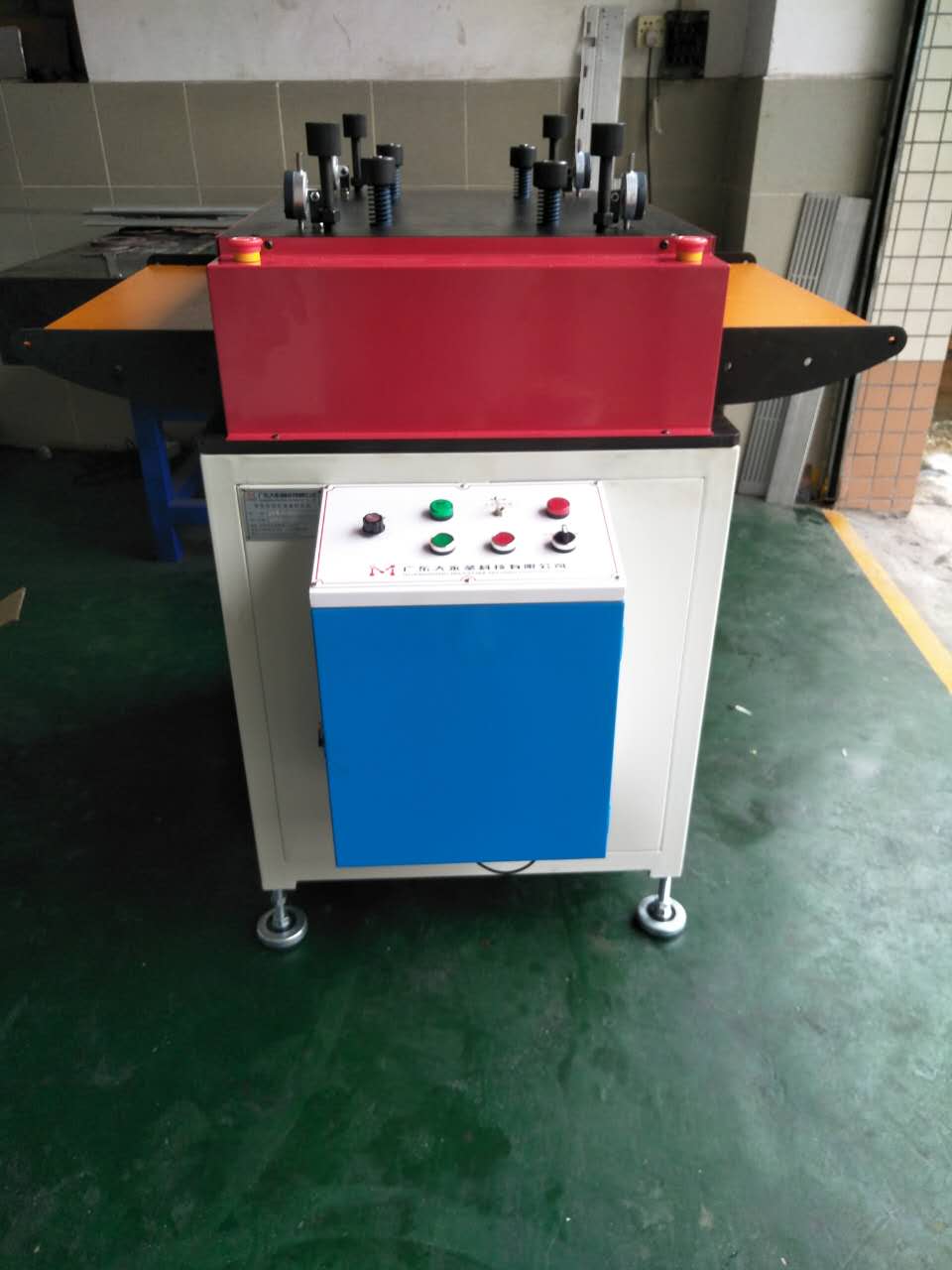

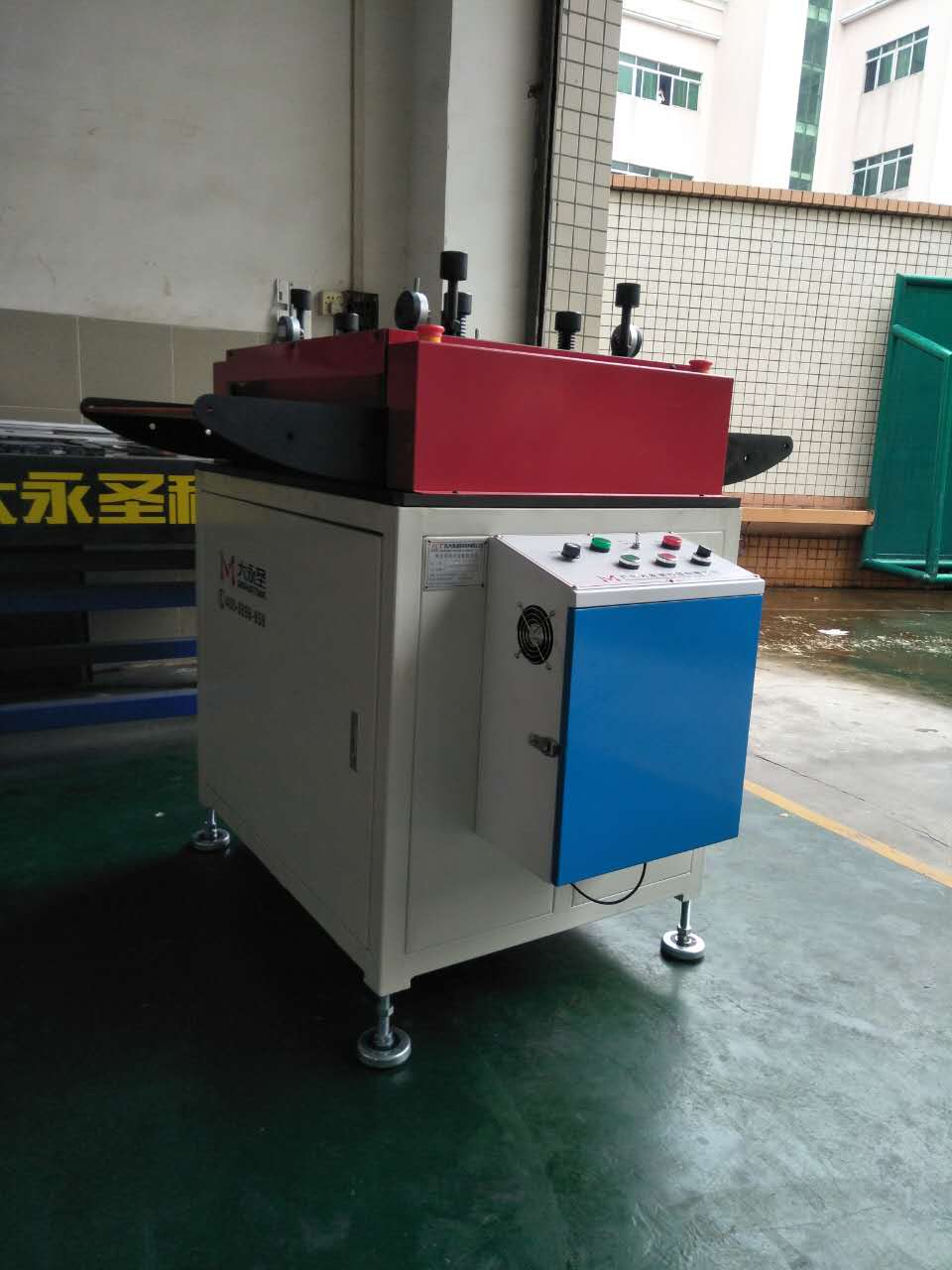

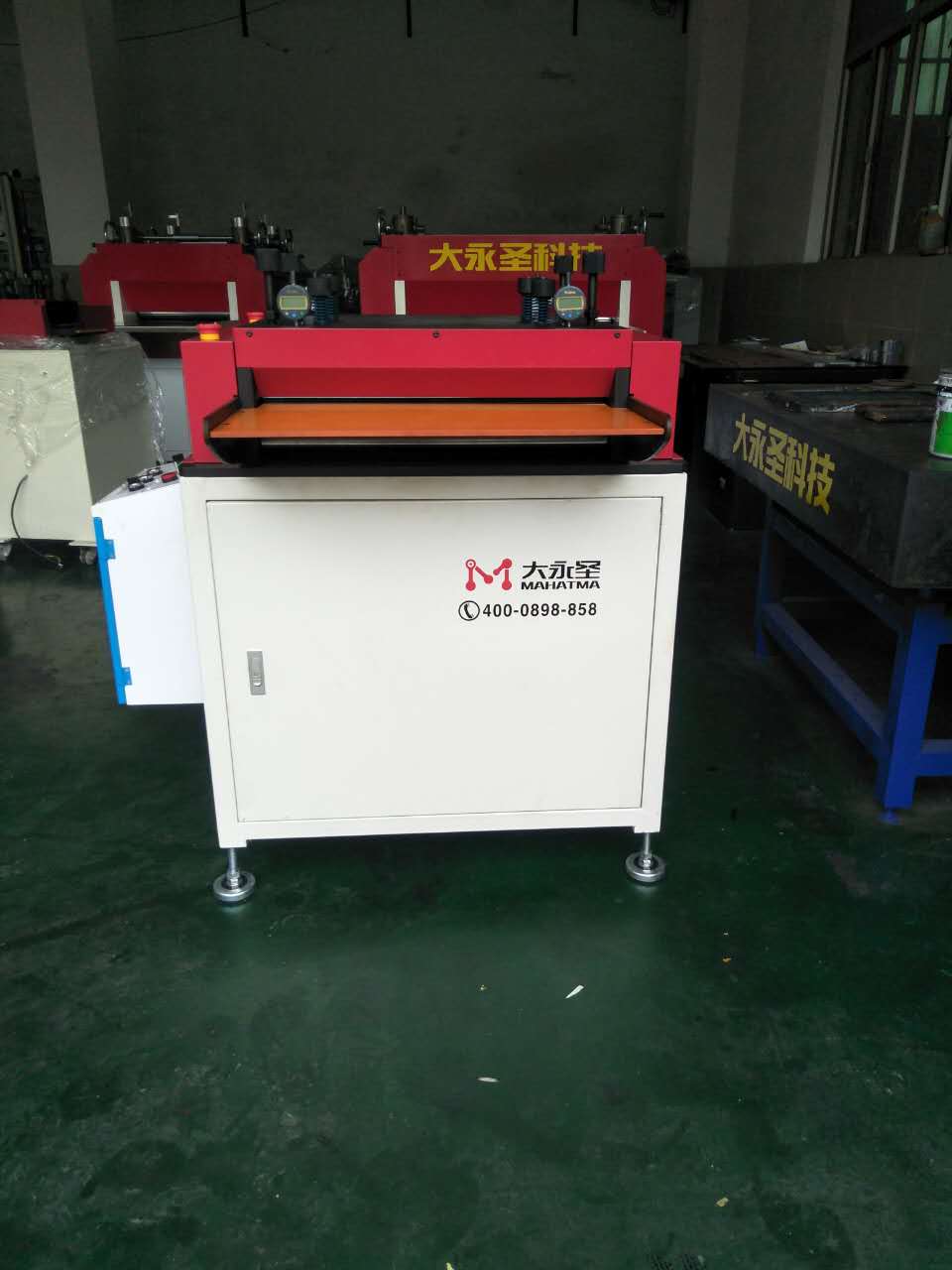

STS series 600 wide precision straightening machine is a high-precision sheet precision leveling machine, suitable for precision drum leveling of metal circles, sheets, strips and various stamping products with a thickness of 0.3-3.0mm; mainly for aluminum plates , copper plate, steel plate and other medium and thick plate materials with high surface requirements, will not deform and rebound after leveling.
1. STS series 600 wide precision straightening machine is a high-precision sheet material precision leveling machine, suitable for precision drum leveling of metal circles, sheets, strips and various stamping products with a thickness of 0.3-3.0mm; For aluminum plate, copper plate, steel plate and other medium and thick plate materials with high surface requirements, it will not deform and rebound after leveling.
2. This series of leveling machine is a multi-roller precision leveling machine. The leveling drum is 10 on the top and 11 on the bottom. Two drive shafts are added. The drum is processed by imported chrome steel and heat treated to HRC60. Post-grinding, then hard chrome plating, and then fine grinding to ensure uniform hard chrome layer and shape tolerance of each shaft; grinding and polishing the surface of the drum to prevent damage to the material product caused by the rotation and extrusion of the drum;
3. The upper and lower rollers of the precision leveling machine STS series can also be covered with rubber rollers. The material is resistant to acid and alkali, wear and compression, and will not have any scratches on the material;
4. There are two adjustable springs on the feeding upper drum of the leveling machine to adjust the feeding pressure, and manually adjust the feeding gap to make feeding smoother;
5. The adjustment method adopts four-point independent fine-tooth screw adjustment, which mainly controls the lifting and lowering of the upper drum, and adjusts the leveling gap to control the leveling effect.
6. The descending point of the leveler is controlled by four precise digital display indicators (accurate to the descending point of 0.01mm), and it is leveled in the form of the whole surface descending, which makes the leveling precision high, the speed adjustment more convenient and simple, and the leveling The flat method is to achieve high-precision flattening effect by the internal stress of the material after multi-rolling. The highest flattening accuracy can reach 0.1mm/(diagonal 100*100mm), and it can also be fine-tuned to achieve better results.
7. The leveling speed of this series is 0-15m/min. The Delta frequency converter is used for frequency control, and the manual knob can be freely adjusted according to needs. The main control system is concentrated in an electric control box, which is convenient to hang on the side of the machine. The location of the operation, the operation panel is easy to understand and easy to operate. Install emergency stop switches in conspicuous positions at the four corners of the machine to ensure safe operation!
8. It is suitable for high-precision leveling of metal sheets. Auxiliary stainless steel pallets are installed at the inlet and outlet of the machine to facilitate the handling of sheet products in and out;
|STS Precision Planer technical parameter table (larger models can be customized)|
|Scroll wheel diameter||Φ42|
|Number of scroll wheels||Up 10 Down 11|
|flat adjustment||Manual adjustment screw|
|speed control||Frequency debugging|
|Operating Voltage||Three-phase 338V/220V|
|Sensing style||Photo/electronic sensor|
