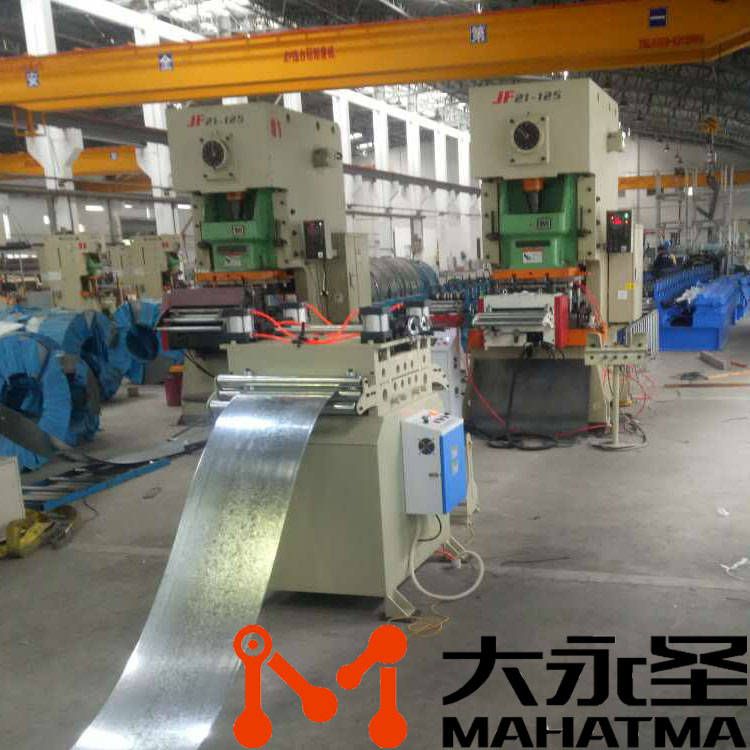

1. The thick plate precision leveling machine is suitable for leveling thick plate metal coils of 1.0 to 6.0 mm. It adopts the worm gear and worm structure to replace the screw rod pressing material of the ordinary leveling machine (and the material is driven by the cylinder in the leveling machine. Movement), adjust by rotating the handwheel, the adjustment is simple and convenient, rotating the handwheel once, the leveling upper wheel only drops 1mm, the operation is simple, the speed is fast, and the precision is high.

2. Leveling rollers: 7 pieces (upper 4/lower 5) are made of high-strength rolling bearing steel bar quenching and tempering, high-frequency quenching, and surface chrome-plated grinding. The surface hardness can reach HRC60-62o. It has extremely high rigidity, strength and wear resistance. The upper and lower leveling rollers are driven by large-modulus gears synchronously, and the straightening force is large, and the surface of the material will not be rubbed or scratched.

3. Part of the feeding roller: the feeding roller adopts a pneumatic pressing device, which can generate enough tension to send the material to the leveling roller and rotate synchronously. It is also made of high-strength rolling bearing steel, which is quenched and hard-plated, and has the same strength and wear resistance as the leveling roller.

4. Power part: use a larger power motor (5-7HP) with a worm gear reducer (30:1) to transmit the leveling material to the leveling machine with a sprocket chain, which can generate a large leveling force, and the motor is controlled by the inverter The running speed is convenient and reliable.

5. Leveling adjustment part: The fine-tuning part adopts a worm gear fine-tuning device. The adjustment precision is high, the pressure is large, and the operation is convenient.

6. The feeding part of the thick plate precision leveling machine is equipped with a feeding support plate to hold up the material head and send it into the feeding roller, and it is equipped with a cylinder to adjust the feeding angle.

Features:

According to the needs of customers, the roller can be covered with rubber, which will not damage the product, the leveling precision is high, and the leveling wheel is durable and stable;
