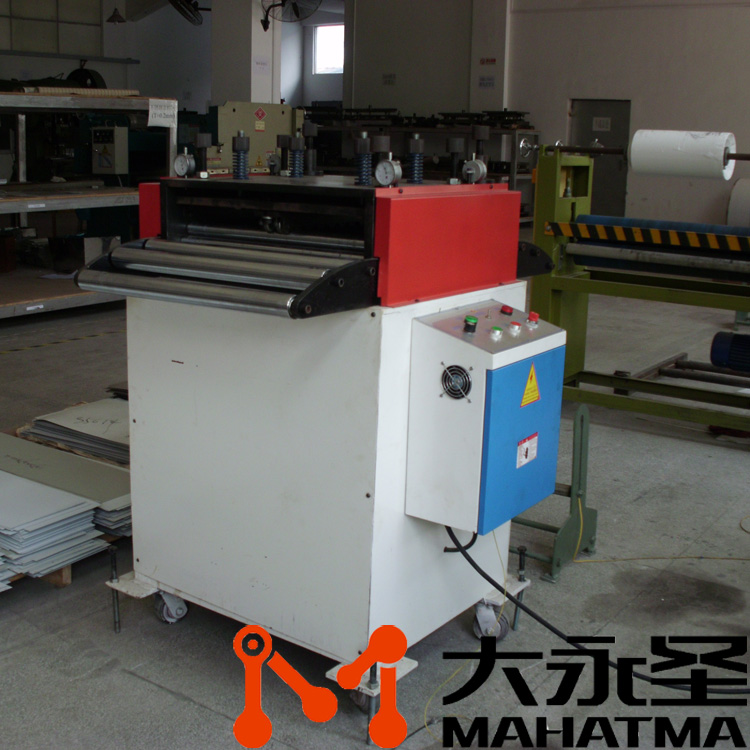

STS coil precision leveling machine (0.3-3.0mm)

STS coil leveling machine is specially designed for high-precision punching of medium-thickness materials. As we all know, it is impossible to produce a good product without leveling and stress relief, so the performance of the leveling machine plays a key role in production;

  • 24-hour customer
  • Guarantee
  • Speed per hour

Product introduction

1. STS coil leveling machine is specially designed for high-precision punching of medium-thickness materials. As we all know, it is impossible to produce a good product without leveling and stress relief, so the performance of the leveling machine plays a key role in production;

2. Due to the different curvature of each point of the material, a single straightening roll arrangement cannot meet the requirements of high-precision straightening. Straight concept, use rough straightening to produce a single curved arc and then use fine straightening to correct it, so as to meet the customer's stamping requirements;

3. The leveling wheel and straightening auxiliary wheel of the leveling machine are made of imported SUJ2, heat-treated HRC60° grinding, and then plated with hard chrome and then ground to ensure the uniform hard chrome layer and the shape tolerance of each shaft;

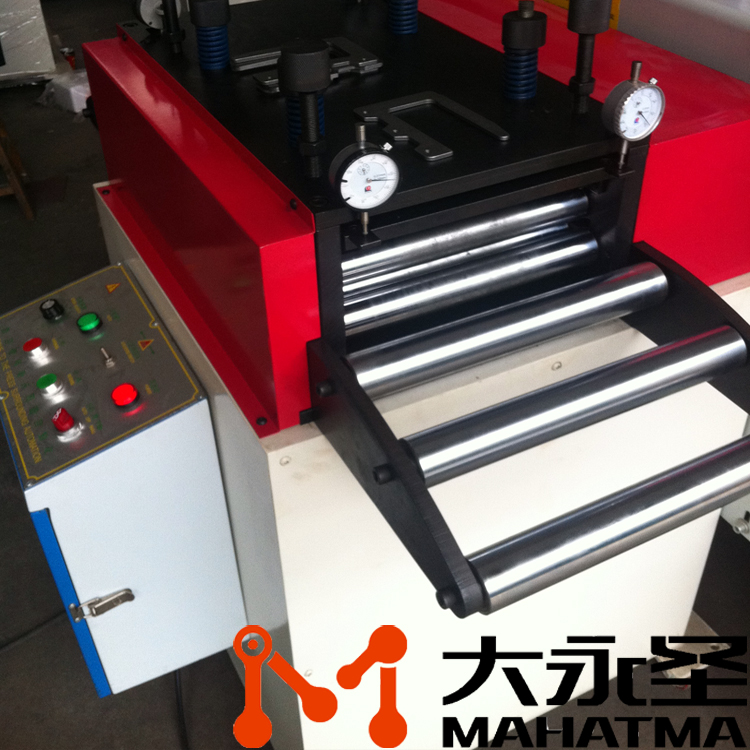

4. The STS coil leveling machine uses a worm gear and worm synchronous pressing mechanism for rough leveling, with a dial indicator, which can quickly find the leveling point;

5. The fine leveling adjustment of the leveling machine adopts a floating four-point balance fine-tuning device, with four precision dial indicators, which can quickly find the leveling point;

6. It adopts universal joint transmission and gear full transmission, which is suitable for products with high straightening accuracy requirements;

7. In addition to the straightening and rolling of the STS coil leveling machine, the addition of the guide wheel can further improve the accuracy of the rolling action of the material;

8. Each straightening wheel of the leveling machine is equipped with a leveling auxiliary wheel to ensure that it will not be bent and deformed during the production process, thereby improving the flatness quality of the product;

9. The upper and lower auxiliary rollers of the STS coil leveling machine are fixed, which improves the rigidity of the upper and lower wheels and prevents deformation under force;

10. Due to the difference in material, material width and material thickness, there is no uniform numerical reference. Therefore, it is recommended to take a small section of material for trial correction before mass production, and then continue production after the effect is achieved;


Product parameters


STS precision leveling machine technical parameter table (Larger models can be ordered by phone)
type  numberSTS-200STS-300STS-400STS-500STS-600
Material Thickness0.3-3.0mm
material width0-200mm0-300mm0-400mm0-500mm0-600mm
wheel diameterΦ42
Number of scroll wheelsUp 10 Down 11
Flat AdjustmentManual adjustment screw
Leveling Dynamics0.75kw0.75kw1.5kw1.5kw2.2kw
Discharge speed16m/min
speed controlFrequency debugging
Operating VoltageThree-phase 338V/220V
Sensing methodPhoto/electronic sensor
Dimensions1.6*1.0*1.51.6*1.1*1.51.6*1.2*1.51.6*1.3*1.51.6*1.5*1.5
device weight350kg400kg450kg500kg600kg
