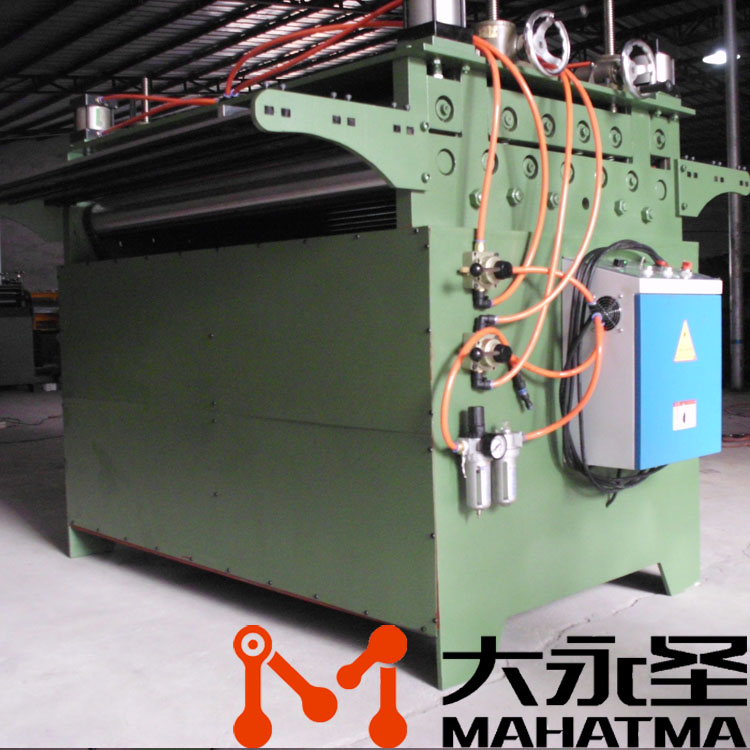

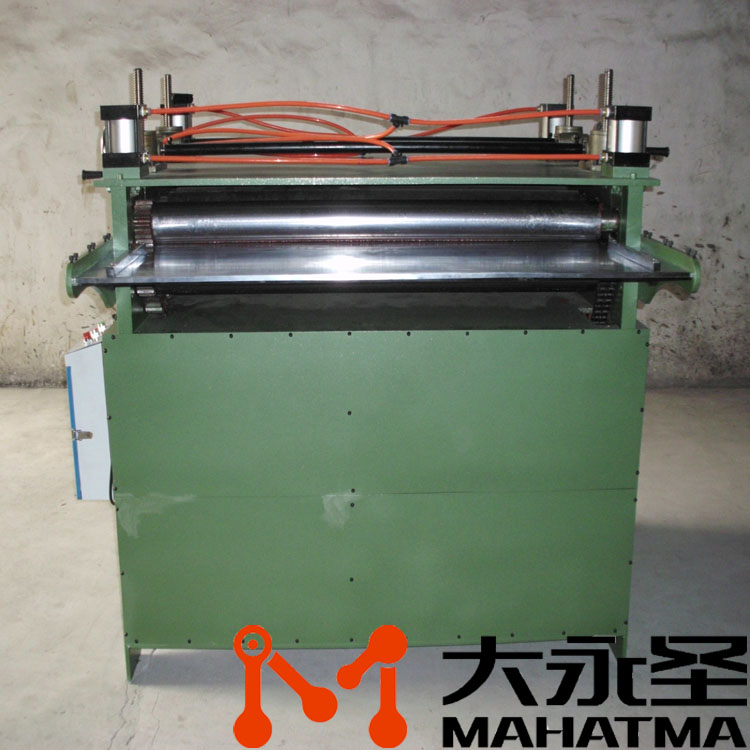

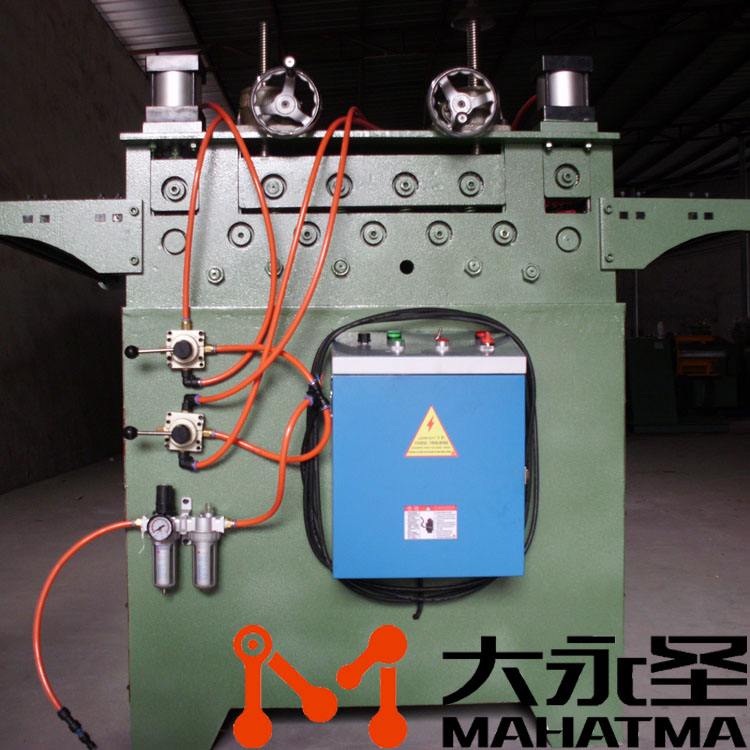

Thick plate leveling machine 1000 wide (0.5-6.0mm)

This machine is a reinforced high-precision thick plate precision leveling machine, suitable for precision roller leveling of metal sheets and strips with a thickness of 0.5-6.0mm;

  • 24-hour customer
  • Guarantee
  • Speed per hour

Product introduction

1. This machine is a reinforced high-precision thick plate precision leveling machine, which is suitable for precision roller leveling of metal sheets and strips with a thickness of 0.5-6.0mm;

2. The leveling machine for stamping parts is a multi-roller precision thick plate leveling machine, with 11 leveling rollers, 2 feeding, 2 discharging, and 7 straightening wheels (upper 4 and lower 5);

3. The leveling wheel and back pressure wheel of the precision leveling machine produced by our company are all made of imported chrome steel and heat treated to HRC60. Post-grinding, then hard chrome-plating and post-grinding to ensure the uniformity of the hard chrome layer and the shape tolerance of each shaft; the surface of the drum is ground and polished to prevent the material product from being damaged by the rotation and extrusion of the drum;

4. There are two adjustable springs on the feeding upper drum of the leveling machine to adjust the feeding pressure, and manually adjust the feeding gap to make feeding smoother;

5. The leveling adjustment is adjusted by the turbine elevator, controlled by four precision dial indicators (accurate to the drop point of 0.01mm), and the leveling is in the form of the whole surface falling, which makes the leveling precision high, the speed adjustment more convenient and simple, and the leveling is more convenient. The flat method is to achieve high-precision flattening effect by the internal stress of the material after multi-rolling.

6. The leveling speed is 0-15m/min, and the Delta frequency converter is used for frequency control, and the manual knob can be adjusted as needed;

7. HS series thick plate high-precision leveling machine is suitable for high-precision leveling of metal sheets. After stamping, the stamping parts are leveled. Auxiliary stainless steel pallets are installed at the inlet and outlet of the machine to facilitate the handling of sheet products; Front and rear belt input and output lines or roller automatic conveyor lines can be installed;

8. Double row chain drive, thickened gears.

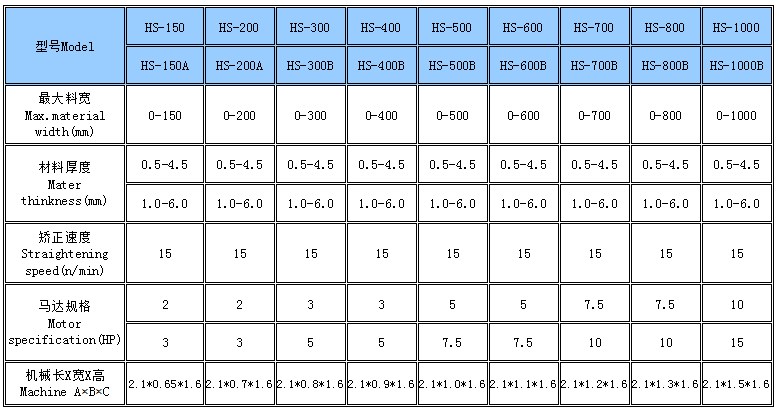

Product parameters
