Thick plate precision leveling machine SHS series (0.8-6.0mm)

Thick plate high-precision leveling machine is a high-precision sheet precision leveling machine, suitable for precision roller leveling of metal circles, sheets and strips with a thickness of 0.8-6.0mm;

  • 24-hour customer
  • Guarantee
  • Speed per hour

Product introduction

1. Thick plate high-precision leveling machine is a high-precision sheet material precision leveling machine, which is suitable for precision roller leveling of metal circles, sheets and strips with a thickness of 0.8-6.0mm;

2. This series of leveling machine is a multi-roller precision thick plate leveling machine. The leveling rollers are 6 on the top and 7 on the bottom. Two auxiliary support rollers are installed on the upper and lower rollers to ensure that the leveling rollers are not deformed during the work force.

3. The leveling wheel and back pressure wheel of the SHS parts leveling machine produced by our company are all made of imported chrome steel. They are ground after heat treatment at HRC 60 degrees, and then plated with hard chrome and then finely ground to ensure uniform hard chrome layer and smoothness of each shaft. Shape tolerance; grinding and polishing the surface of the drum to prevent the material product from being damaged by the rotation and extrusion of the drum;

4. There are two adjustable springs on the feeding upper drum of the leveling machine to adjust the feeding pressure, and manually adjust the feeding gap to make feeding smoother;

5. The leveling adjustment is adjusted by the turbine elevator, which mainly controls the lifting and lowering of the upper drum, and adjusts the leveling gap to control the leveling effect. It is composed of 4 2.5T worm gear lifters, and the handwheel is forward and reversed to control the lifter to adjust the leveling effect. There are 4 compression springs installed on the top to eliminate the worm gear gap and achieve precise adjustment.

6. The descending point of the leveler is controlled by four precise digital display indicators (the descending point can reach 0.01mm), and it is leveled in the form of the whole surface descending, which makes the leveling precision high, the speed adjustment more convenient and simple, and the leveling The method is to achieve high-precision leveling effect by the internal stress of the material after multi-rolling, and the leveling accuracy can reach 0.1mm/(diagonal 100*100mm), and it can also be fine-tuned to achieve better results.

7. The leveling speed of this series is 0-15m/min. The Delta frequency converter is used for frequency control, and the manual knob can be freely adjusted according to needs. The main control system is concentrated in an electric control box, which is convenient to hang on the side of the machine. The location of the operation, the operation panel is easy to understand and easy to operate. Install emergency stop switches in conspicuous positions at the four corners of the machine to ensure safe operation!

8. It is suitable for high-precision leveling of metal sheets. Auxiliary stainless steel pallets are installed at the inlet and outlet of the machine to facilitate the handling of sheet products in and out;

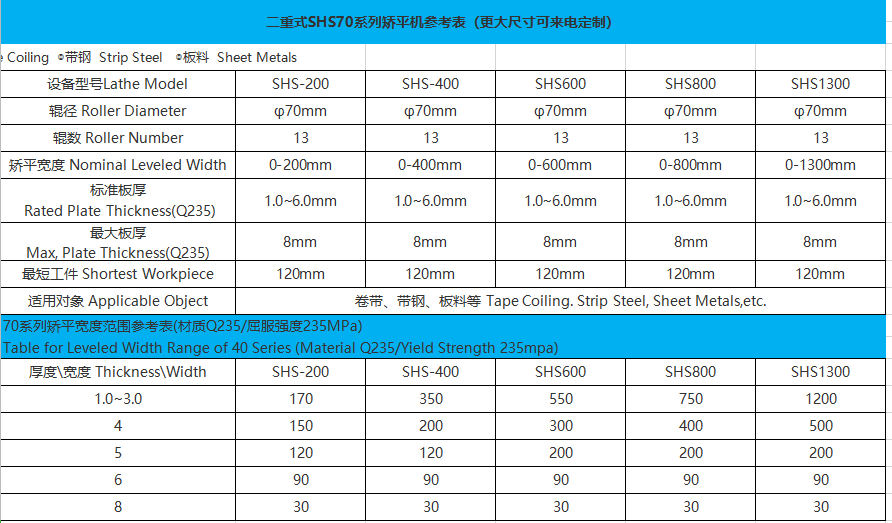

Product parameters




Product video

No parameters, please check other services...
